Tauri 2 With Flutter: A Template

December 22, 2024 • Tauri Flutter Rust Dart • 7 minutes to read • Edit

The template can be found at akshaybabloo/tauri_flutter_template

Introduction

Tauri is a modern framework for building desktop applications using web technologies, powered by Rust. It stands out as a lightweight, fast, and secure alternative to Electron. On the other hand, Flutter is a versatile UI toolkit that enables developers to create natively compiled applications for mobile, web, and desktop from a single codebase. By combining the strengths of Tauri and Flutter, you can craft efficient, cross-platform desktop applications with the robustness of Rust and the flexibility of Flutter.

In this article, we’ll explore how to set up a new project using Tauri 2 and Flutter.

Prerequisites

Before we begin, make sure you have the following installed on your system:

• Flutter
• Bun - An alternative to npm and yarn.
• Node.js
• Rust

Creating a New Project

Once we have the prerequisites installed, we can create individual projects for both Tauri and Flutter, then configure Tauri to integrate seamlessly with Flutter.

Tauir Project

Lets create a Tauri project with vanilla JavaScript as the UI.

bun create tauri-app

Use these initial configurations:

$ bun create tauri-app
✔ Project name · tauri_app
✔ Identifier · com.gollahalli.tauri-flutter-template
✔ Choose which language to use for your frontend · TypeScript / JavaScript - (pnpm, yarn, npm, deno, bun)
✔ Choose your package manager · bun
✔ Choose your UI template · Vanilla
✔ Choose your UI flavor · JavaScript

We should now have a folder called tauri_app with the following structure:

tauri_app
├── package.json
├── README.md
├── src/
└── src-tauri/

The src folder typically contains JavaScript code for the UI, while the src-tauri folder houses the Rust code for the backend. Since we’ll be using Flutter for the UI, we can safely delete the src folder.

Flutter Project

In the tauri_app folder, create a new Flutter project, using:

flutter create --org=com.gollahalli.tauri-flutter-template --platforms=web .

This command creates a new Flutter project with the organization name com.gollahalli.tauri-flutter-template and the platform set to web. The . at the end tells Flutter to create the project in the current directory.

Now we should have a structure like this:

tauri_app
├── analysis_options.yaml
├── lib/
├── package.json
├── pubspec.lock
├── pubspec.yaml
├── README.md
├── src-tauri/
├── tauri_app.iml
├── test/
└── web/

The web folder contains the Flutter web project, but we don’t need to maintain it manually as Flutter handles it for us. The lib folder is where the Dart code for the UI resides, while the test folder is designated for testing the Dart code.

Configuring Tauri to Use Flutter

Tauri simplifies the process of integrating any web application into a desktop application. To integrate Flutter Web with Tauri, we need to update the Tauri configuration.

Under the src-tauri directory, open the tauri.conf.json file, and add change following configuration:

{
  "$schema": "https://schema.tauri.app/config/2",
  "productName": "tauri-app",
  "version": "0.1.0",
  "identifier": "com.gollahalli.tauri-flutter-template",
  "build": {
+    "beforeDevCommand": "flutter run -d web-server --web-port 5000",
+    "devUrl": "http://localhost:5000",
+    "beforeBuildCommand": "flutter build web",
-    "frontendDist": "../src"
+    "frontendDist": "../build/web"
  },
  "app": {
    "withGlobalTauri": true,
    "windows": [
      {
        "title": "tauri-app",
        "width": 800,
        "height": 600
      }
    ],
    "security": {
      "csp": null
    }
  },
  "bundle": {
    "active": true,
    "targets": "all",
    "icon": [
      "icons/32x32.png",
      "icons/128x128.png",
      "icons/[email protected]",
      "icons/icon.icns",
      "icons/icon.ico"
    ]
  }
}

• The beforeDevCommand runs the Flutter web server on port 5000 before starting the Tauri development server.
• The devUrl points Tauri to the local Flutter web server running at http://localhost:5000.
• The beforeBuildCommand ensures the Flutter web project is built before the Tauri project.
• The frontendDist is updated to ../build/web, which is the output directory for the Flutter web build.

Running the Project

With the configurations in place, you can now run the project using the following command:

bun run tauri dev

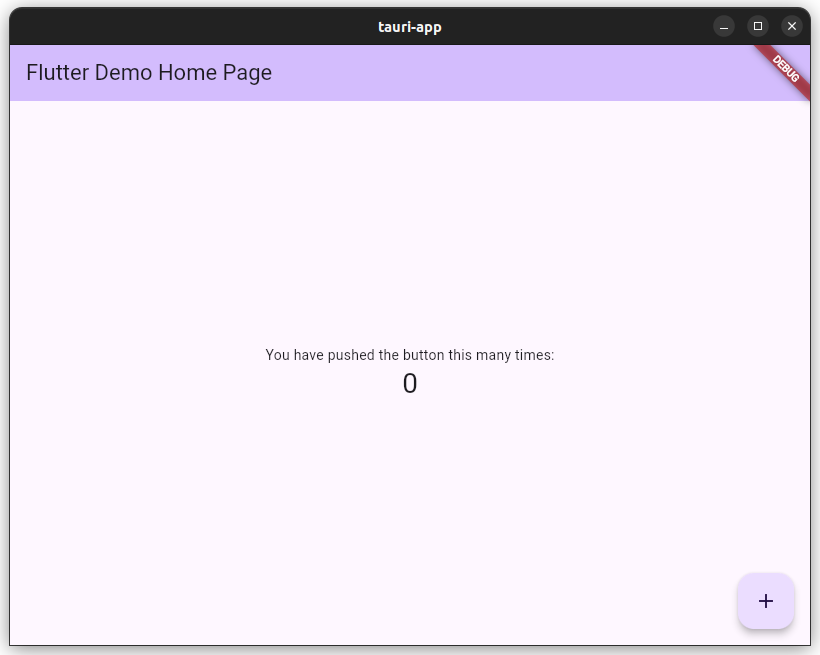

This command starts the Flutter web server along with the Tauri development server. Once running, you’ll see the Flutter web project displayed inside the Tauri application window.

If you only need to run the UI, the setup is complete, and you’re good to go. However, if you want to enable communication between the Flutter UI and the Rust backend, keep reading for the next steps.

Functional Add Button

The integration is working! However, the + button currently uses Flutter to handle its functionality instead of calling the Rust backend. Let’s modify this behaviour by utilising Tauri’s IPC (Inter-Process Communication) to connect the Flutter UI with the Rust backend.

Rust Backend

Under src-tauri/src, open lib.rs and add the following code:

#[tauri::command]
fn add_one(number: &str) -> String {
    print!("Adding 1 to {}\n", number);
    let number: i32 = number.parse().unwrap();
    let result = number + 1;
    result.to_string()
}

#[cfg_attr(mobile, tauri::mobile_entry_point)]
pub fn run() {
    tauri::Builder::default()
        .plugin(tauri_plugin_opener::init())
        .invoke_handler(tauri::generate_handler![add_one]) // <-- Add add_one to this line
        .run(tauri::generate_context!())
        .expect("error while running tauri application");
}

This code defines a new Tauri command, add_one, which takes a number as a string, increments it by 1, and returns the result as a string. The invoke_handler is updated to include this command, enabling the Flutter UI to call it via Tauri’s IPC.

Flutter Frontend

To enable communication between Flutter and the Rust backend, we need to create a JavaScript (JS) interop layer. First, add the web package to your Flutter project by running the following command:

flutter pub add web

Next, in the lib folder, create a new file named tauri.dart and add the following code:

import 'dart:js_interop';
import 'package:web/web.dart';

@JS()
@staticInterop
class _Tauri {}

@JS()
@staticInterop
class _TauriCore {}

extension TauriCoreExtension on _TauriCore {
  external JSPromise<JSAny> invoke(JSAny target, JSAny? args);
}

extension TauriExtension on _Tauri {
  external _TauriCore get core;
}

extension TauriInterop on Window {
  /// Invokes a Tauri command.
  Future<Object?> invoke(String cmd, [Map<String, Object?> args = const {}]) async {
    final result = await __TAURI__.core.invoke(cmd.toJS, args.jsify()).toDart;
    return result.dartify();
  }

  external _Tauri get __TAURI__;
}

This code extends the window object in JavaScript to include a method for invoking Tauri commands using __TAURI__.core.invoke. This allows the Flutter frontend to call Rust backend commands through the interop layer, making it easy to integrate the two environments.

Now, let’s update the main.dart file to ensure the Rust backend is called when the + button is clicked. Here’s how it looks:

import 'package:tauri_flutter_template/tauri.dart';
import 'package:web/web.dart' as web;

// Removed the existing code for brevity

class _MyHomePageState extends State<MyHomePage> {
  int _counter = 0;

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      floatingActionButton: FloatingActionButton(
        onPressed: () async {
          try {
            // Call the Rust backend to add 1 to the counter
            final value = await web.window.invoke("add_one", {'number': _counter.toString()});
            setState(() {
              // Update the counter with the new value
              _counter = int.parse(value.toString());
            });
          } catch (e) {
            print(e);
          }
        },
        tooltip: 'Increment',
        child: const Icon(Icons.add),
      ),
    );
  }
}

The onPressed function of the floating action button now invokes the add_one command from the Rust backend, passing the current counter value as a string. The Rust function processes this value and returns the incremented result. The state is then updated with the new value, ensuring the UI reflects the change.

Rerun the project using the following command:

bun run tauri dev

Now, clicking the + button will call the Rust backend and increment the counter by 1.

Few Things to Note

• The Flutter web app must be running in web server mode to function correctly. Unlike standard Flutter apps, you can’t use the hot restart feature by pressing r in the terminal. Instead, you’ll need to stop the Tauri app and restart it using bun run tauri dev.
• Attaching Flutter DevTools to the Flutter web app running inside the Tauri application doesn’t seem to work with this setup. This might require a different configuration or workaround.
• After the initial run, the app might not load properly. If this happens, simply right-click within the app and select Reload to refresh the page. This resolves the issue.

Conclusion

Tauri 2 and Flutter together offer a powerful solution for building cross-platform desktop applications, combining the performance and security of Rust with the flexibility and beauty of Flutter. By following the steps outlined in this article, you can create a new project with Tauri 2 and Flutter, seamlessly integrating a Flutter web UI with a Rust backend. This combination opens up a wealth of possibilities for creating fast, secure, and visually stunning desktop applications.

While the integration works well overall, there are a few limitations to note. If you manage to overcome any of the challenges mentioned, please share your solutions in the comments below—I’d love to hear how you tackled them!
